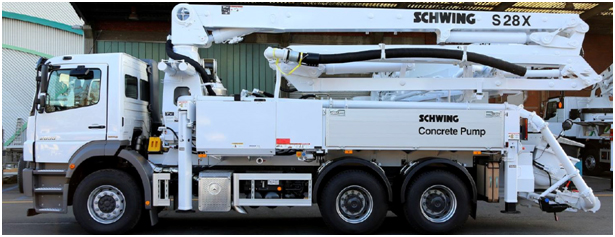

28m Schwing Z-fold Boom Pump 2017

Chassis Mercedes Benz
Placing Boom 28 ZR
Maximum Vertical Reach 27.71m
Maximum Horizontal Reach 23.67
Reach Depth 23.67
Number of Boom Sections 4
End Hose Option 4m
Concrete Output 114m3 per hour
Maximum Pressure on Concrete 85 bar
Stroke rate 23 per minute
Slewing Range 70degrees

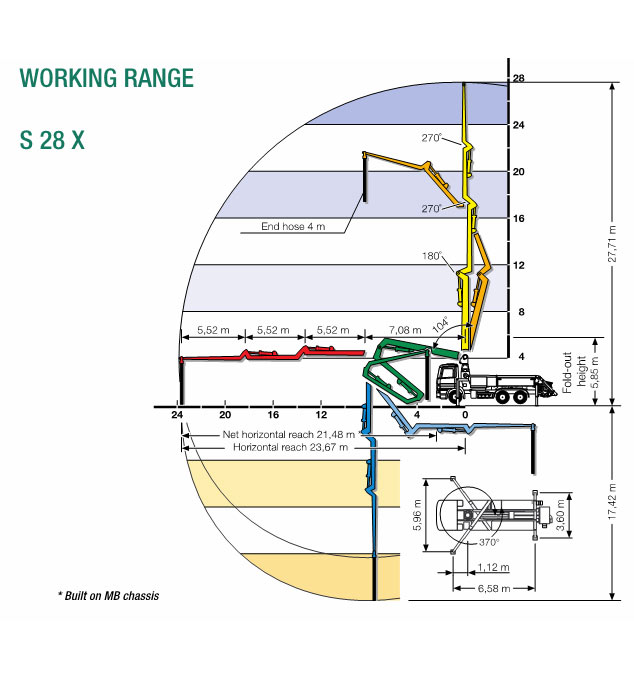

28m Schwing Z fold Boom Pump diagram
